Our Business | Business plant Factory

Artificial seedling cultivation system

[Anytime][Anywhere][Anyone]Healthy seedling development!![Artificial seedling cultivation system]

Seedling cultivation system

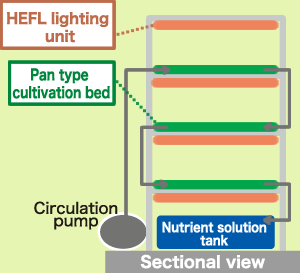

Nutrient solution circulating seedling cultivation system

A non-circulating system is also available.
The nutrient solution circulating seedling cultivation system can be replaced with a bottom irrigation system if necessary.

1.For the First time, we utilize the HEFL for seedling cultivation system.

5.	Cultivation of tomato seedlings, which require strong light, is now possible.

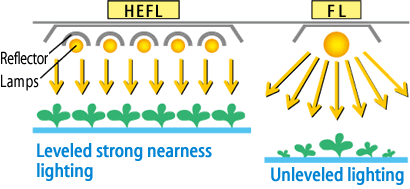

Comparison of HEFL and traditional fluorescent lamp

Relation between lighting distrance vs PPF

* Leaf vegetable require 150PPF,strawberry and tomto require 200PPF

2.You can control optical power.

More detail of vegetable factories utilizing HEFL[ PDF file ] >>

3.Anytime, healthy and quality seedling production

By delivering strong light evenly to the plants underneath, you can stably produce quality seedlings with thick stalks and uniformly colored leaves.

4.The Seedling cultivation --Not relying on flair and experience.

レタス苗Sprout conditions can be standardized.

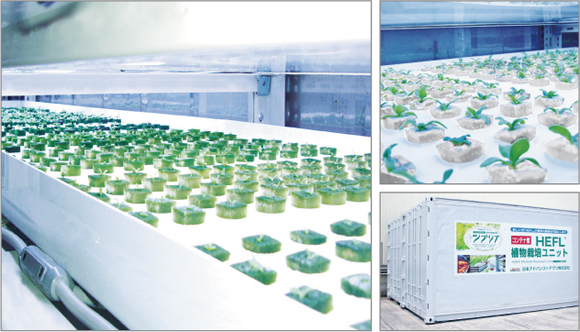

5.Artificial seedling cultivation system excellent in the cost performance using a used container

Our seedling cultivation system realizes high reproducibility by fixing up the condition of budding. It is the first step for 'Manufacturing of Agriculture'.

6.A compact seedling vegetable cultivation system

Compatible with both hydroponic and soil cultivation!

External size
(width x depth x height)
Approx. 1,300 x 850 x 2,450 (mm)
Culture shelf 3-shelf system
HEFL lighting unit 970 x 700 x 57 (mm) with 12 lamps
Cooling capacity 16 - 25 ℃
Power 100V
Automatic temperature adjustment feature Available
Wattage range Approx. 538 - 745 W (with dimming control)

* Specification may be changed without a preliminary announcement.
